Applications of Satellite Data

Jeffrey Polovina (NOAA/PIFSC) and Melanie Abecassis (JIMAR/PIFSC), with slides from Cara Wilson (NOAA/SWFSC)

Introduction

Ocean Features Important to Ecosystems

• Ocean ‘fronts’

• boundaries

• ‘edges’

• River plumes

• Mesoscale circulation patterns: eddies, meanders, ‘loops’

• Convergence zones

• Subsurface thermal structure: MLD, thermocline

• Ocean surface winds

• Ocean currents

• Wave heights

All of these ocean features can be measured, detected or inferred by satellite data.

Temporal Events Important to Ecosystems

• Upwelling

• Harmful Algae Blooms (HABs)

• Oil Spills

• Seasonal Transitions

• El Niño events

• Regime Shifts (i.e. PDO)

• Global Climate Change

Climate change can affect the timing and/or intensity of many of the processes. Climate Data Records (CDRs) of satellite measurements need to be maintained.

Satellite remote sensing for an ecosystem approach to fisheries management

• Near-real time to support fishing operations/research cruises

• Understand the link between oceanography and marine resources habitats

• Input to habitat models

• Define and monitor the spatial distribution of biomes

• As input or validation to ecosystem/earth system models

• Identify ecosystem carrying capacity

Ways remote sensing can contribute to conservation

• Contribute to a habitat model for species distribution and abundance

• Put animal movement in an oceanographic context

• Monitor and predict ecosystem responses from multiple stressors including climate change

• Inform configurations of protected areas

Examples of uses of satellite data

• To describe ocean features that define the foraging habitats of loggerhead sea turtles, albacore and bluefin tunas, and Hawaiian monk seal.

• In fisheries bycatch studies with sea turtles and sea birds

• In habitat models for loggerhead sea turtles, and pelagic fishes

• To develop ecological indicators (coral reef bleaching, biome dynamics, phytoplankton size)

This "lecture" will showcase a number of examples of studies in the Pacific Ocean that used satellite data to characterize species habitat or oceanic features that drive animal movements.

Qualitative Approaches

• Overlays and histograms with tagging and fisheries data to describe ocean features and habitats animals use.

• Descriptive oceanography to understand the oceanographic basis of foraging habitats.

Loggerhead turtles habitat

From Polovina et al, 2000. Turtles on the edge: Movement of loggerhead turtles (Caretta caretta) along oceanic fronts, spanning longline fishing grounds in the central North Pacific, 1997-1998. Fisheries Oceanography 9(1):71 - 82

Wind Stress Curl, Surface Chlorophyll a, and 18ºC SST for 180-160ºW

Foley, pers. Comm.

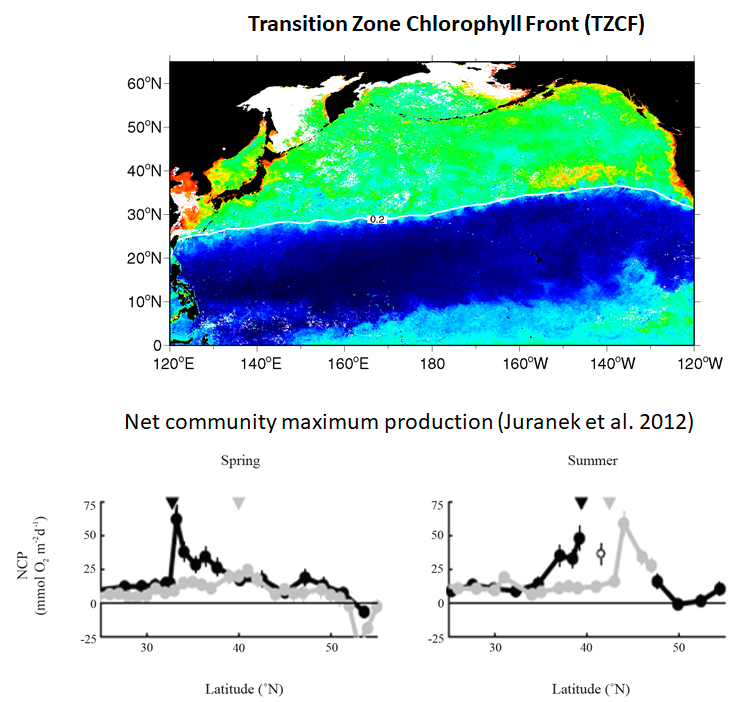

Transition Zone Chlorophyll Front (TZCF)

Albacore tuna habitat

TurtleWatch

From 2004, larger hooks and different bait greatly reduced turtle interactions in the swordfish fishery. Additionally, based on loggerhead’s use of the TZCF, Dr. Evan Howell developed TurtleWatch to advise fishers of the zone of highest probability of interaction.

Monk seal pups survival

Baker et al, 2007

Surface chlorophyll in: March 2000 (top, middle) and March 2004 (bottom) provide an example of interannual variation in northward extent of oligotrophic waters.

Survival of pups at northern Hawaiian atolls is linked to the location of the 18o SST isotherm, a proxy for the TZCF, 1985-2003.

When the front is too far north, productive waters don’t reach the atolls and pup survival is lower.

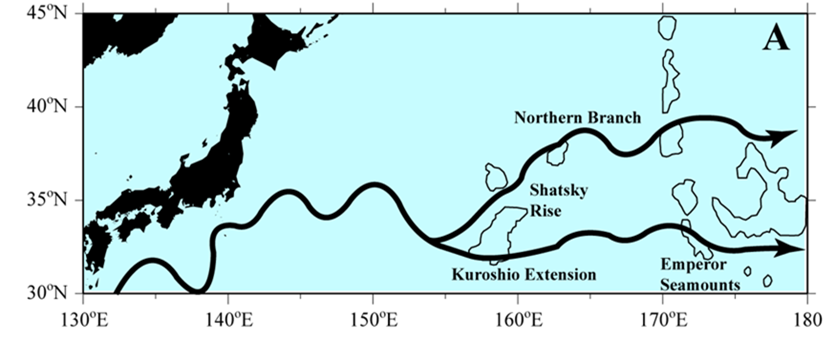

The Kuroshio Extension Bifurcation Region (KEBR)

From Polovina et al 2006.

Meanders in the KEBR from AVISO altimetry

Primary productivity in the KEBR

Loggerhead turtle track: use of eddies in the KEBR

Frequency distributions for loggerhead turtles released from Japan

Overlay of chlorophyll-a concentration and altimetry, shows that when chl-a concentration is high in the KEBR, turtles are there. When chl-a concentration goes down, because of summer stratication, the turtles migrate north, tracking the TZCF. Bringing two sensors together can be very helpful to understand the context of animal migration.

Blue line: max currents velocity from altimetry (m/s) in the longitude range of KEBR.

Coral reefs example

From Brainard et al, 2018.

Quantitative Approaches

• Use satellite data in GLMs and GAMs to build bycatch or habitat models.

• Construct and compare frequency distributions to map habitat

• Map biomes

• Estimate fishery catch or ecosystem carrying capacity.

Pelagic Longline Bycatch

Wren et al, 2019

Loggerhead turtles habitat use

Kobayashi et al 2008

Knowledge of BOTH is critical towards characterizing habitat preference.

Habitat selectivity:

• From Strauss (1979), calculated as: LI = utilization – availability

• LI for each of:

  • SST

  • Chlorophyll-a

  • Magnetic total force, declination & inclination

• Use positive values of LI to delineate habitat

• Sum individual indices to produce overall habitat index.

Model output:

• Seasonal climatological habitat indices, for example.

• Habitat maps can be produced for any time interval, and forecast for short-term or long-term.

• Habitat predictions based on climate change, El Niño, La Niña patterns.

Quarterly species richness for 23 pelagic species

from Hazen et al 2013.

Based on 4300 electronic tags, satellite SST and Chl-a, habitat models, and GFDL Earth Systems Model projections.

Losers and winners

Whale Watch

Hazen et al 2017

• Use satellite data to model blue whales & ship strike risk in near real time

• 104 OSU Blue Whale tracks

• NASA funded

EcoCast

Hazen et al, 2018.

Using remotely-sensed products, EcoCast maps are produced in near-real time for use by managers and fishers and aim to minimize fisheries bycatch and maximize fisheries target catch. This is a NASA-funded project.

Island-Mass Effect

Gove et al, 2016

The island-mass effect increases nearshore phytoplankton biomass by up to 86% over oceanic conditions, providing basal energetic resources to higher trophic levels that support subsistence-based human populations.

Coral Reef Fish Assemblages

Williams et al 2015

Adjusting for other factors, the highest levels of oceanic productivity were associated with more than double the biomass of reef fishes compared to islands with lowest oceanic productivity.

Natural bounds on herbivorous reef fishes

Heenan et al 2016

Reefs in warmer waters have lower browser biomass and greater detritivore biomass. Areas with intermediate wave energy and high chlorophyll a have increased grazer biomass.

Ecological Indicators

• Biome Dynamics

• Spring Bloom Statistics (date, duration, max biomass, total biomass)

• Phytoplankton functional groups and/or size structure

• Primary production

• Coral bleaching

BioGeoChemical Provinces

Chassot et al 2011

(a) Map of Longhurst (2007) BGCP (b) Map of the dynamic BGCP for 2005

Dynamic BGCP were derived from:

• SST based on the AVHRR series

• SeaWiFS Chl a

• salinity (World Ocean database)

• bathymetry (GEBCO)

Oligotrophic gyres

from Polovina et al 2008

SeawiFS surface chlorophyll climatology with oligotrophic gyres in black.

Changes in the size of the oligotrophic waters between 1998-1999 and 2005-2006:

• in December: North Pacific, North Atlantic

• August: South Pacific

Coral Reef Watch

https://coralreefwatch.noaa.gov/satellite/index.php

This map shows the maximum stress level experienced during the most recent seven (7) consecutive days.

from Heron et al 2016

Degree Heating Week (DHW) accumulates when the SST value exceeds the maximum (blue dashed) of the monthly mean climatology values (blue plus) by at least 1 °C (blue solid: Bleaching Threshold).

DHW thresholds of 4 and 8 °C-weeks (red dashed) have been associated with significant coral bleaching, and widespread bleaching and significant mortality, respectively.
